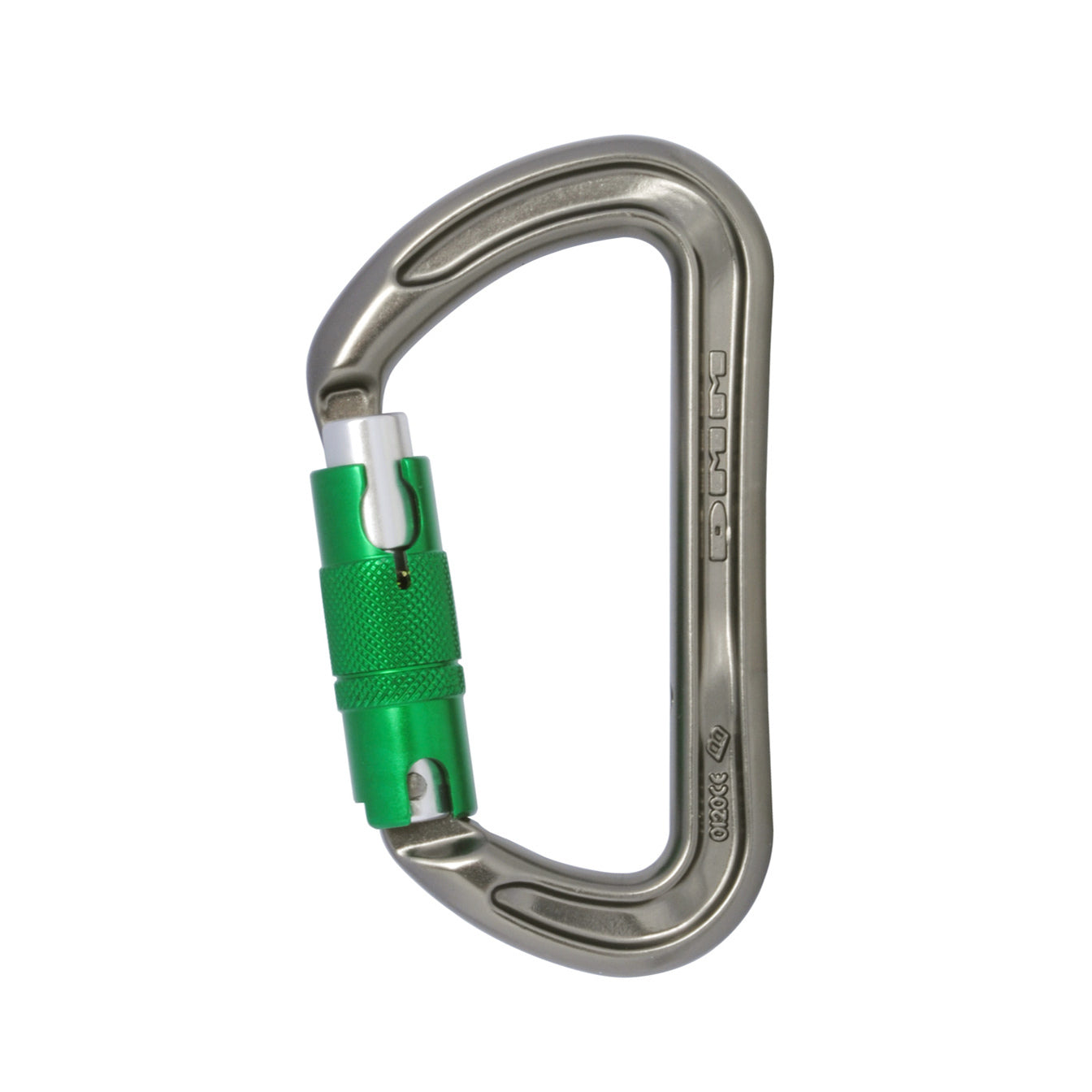

DMM Zodiac 32kN Aluminium 3 Way Carabiner

DMM Zodiac 32kN Aluminium 3 Way Carabiner

The DMM Zodiac 32kN Aluminium 3 Way Carabiner is a heavy-duty offset D connector designed for rescue, rigging, rope access, and work-at-height applications where high strength and reliable performance are essential. Its 32 kN major axis strength, lightweight aluminium construction, and secure three-way locking gate make it ideal for demanding professional use.

The offset D shape combines efficient major axis loading with an enlarged basket for improved handling, particularly when wearing gloves. DMM's patented Taperlock nose creates a smooth, snag-free connection while increasing gate push-in and cross-gate strength. The robust locking barrel provides dependable security, making the Zodiac suitable for repeated use in challenging environments.

Designed for professional users who require both strength and ease of handling, the Zodiac is certified to recognised international standards for connectors. The connector can also be supplied with cross-drilled captive bar compatibility, helping maintain correct orientation where required while ensuring loads are applied along the major axis for maximum performance.

Key Features

• Heavy-duty offset D aluminium carabiner with 32 kN major axis strength
• Secure three-way locking gate for dependable operation
• Patented Taperlock nose reduces snagging and improves gate strength
• Large basket design improves handling, even when wearing gloves
• Suitable for rescue, rope access, rigging and work-at-height applications
• Compatible with optional captive bar configuration



Technical Specifications

Specification	Detail
Product code	A827
Material	Aluminium
Gate type	3-way locking
Major axis strength	32 kN
Minor axis strength	12 kN
Open gate strength	12 kN
Gate opening	18 mm
Dimensions	66 x 114 mm
Weight	79 g
Colour	Titanium / Green
Certification	EN 362:2004 B/T, EN 12275:2013 B
Manufacturer	DMM
